Phoenix

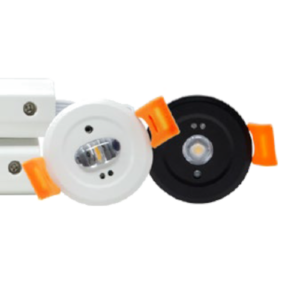

Phoenix is a recessed emergency downlight with a choice of open area or corridor lens. The open area lens gives a 127° beam and 190 lm, and the corridor lens gives a 147° x 80° beam and 170 lm. Both versions provide 1.5W of emergency output from a Li-ion 3.6V 2.5Ah battery.

A downlight bezel lets Phoenix fit existing oversized cutouts, and a Ø80 mm bezel is available as an accessory. The polycarbonate housing is rated IP20 and IK06, and the light source is 4000K with a CRI above 80 and a lifetime of 50,000 hours. Phoenix is available with a white or black head, and a self-test version is available. It works on 220 to 240Vac from 0°C to 40°C and weighs 0.15 kg.
