Crux
About

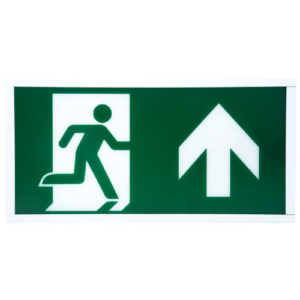

Crux is a steel exit box with a 90 lm output and a viewing distance of 34 m. It has BESA fixings and a 20 mm conduit entry, and arrow down and arrow left/right legends are available as accessories. Emergency output is 1.5W from a Li-ion 3.6V 2.5Ah battery.
The steel housing is rated IP20 and IK06, and the light source is 4000K with a CRI above 80 and a lifetime of 50,000 hours. Self-test and DALI addressable emergency versions are available. Crux measures 392 x 41 x 196 mm, weighs 1.1 kg and works on 220 to 240Vac from 0°C to 40°C.
- 34 m viewing distance
- 90 lm output

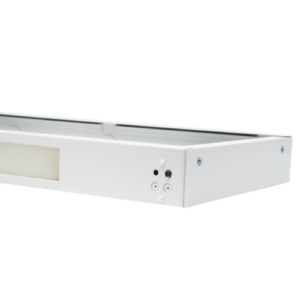

- Steel housing
- BESA fixings
- Self-test and DALI options
