Jupiter

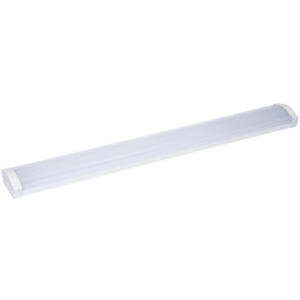

jupiter linear fitting

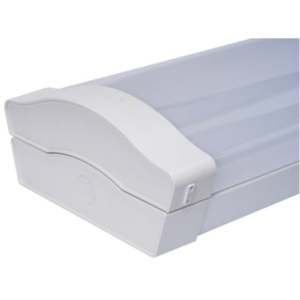

jupiter end cap

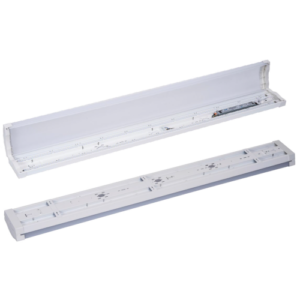

Jupiter components

About

Jupiter is a high efficiency LED linear for surface or suspended mounting. It comes in three lengths, 1205, 1505 and 1805 mm, with output of up to 5,300, 7,800 or 10,400 lm and efficacy of 132 to 139 lm/W, so you can match the length to the space and the light level you need.

A push-fit connector block keeps installation quick, and the colour temperature is selectable between 3000K, 4000K and 6500K. Jupiter is switch dimmable or DALI dimmable, and a plug and play emergency pack and microwave sensor are available as options.

  • Surface or suspended
  • Up to 10,400 lm
  • Selectable CCT
  • Push-fit connector block
  • IP20 and IK08

Compatible with

tridonic
Mymesh
casambi

Downloads

Document

Format

Datasheet

PDF
